App Header

The App Header provides consistent controls for navigating between global areas of the application (organizations and projects) and accessing application utilities like support, documentation, and user settings. It should be paired with the App Side Nav component within the App Frame (in code).

Usage

When to use

• Provide consistent global navigation across an application.
• Offer quick access to important utilities such as user settings, help, and search.
• Establish a clear visual hierarchy and brand presence at the top of the application.

When not to use

• To navigate within subpages of an organization or project, use the App Side Nav instead.

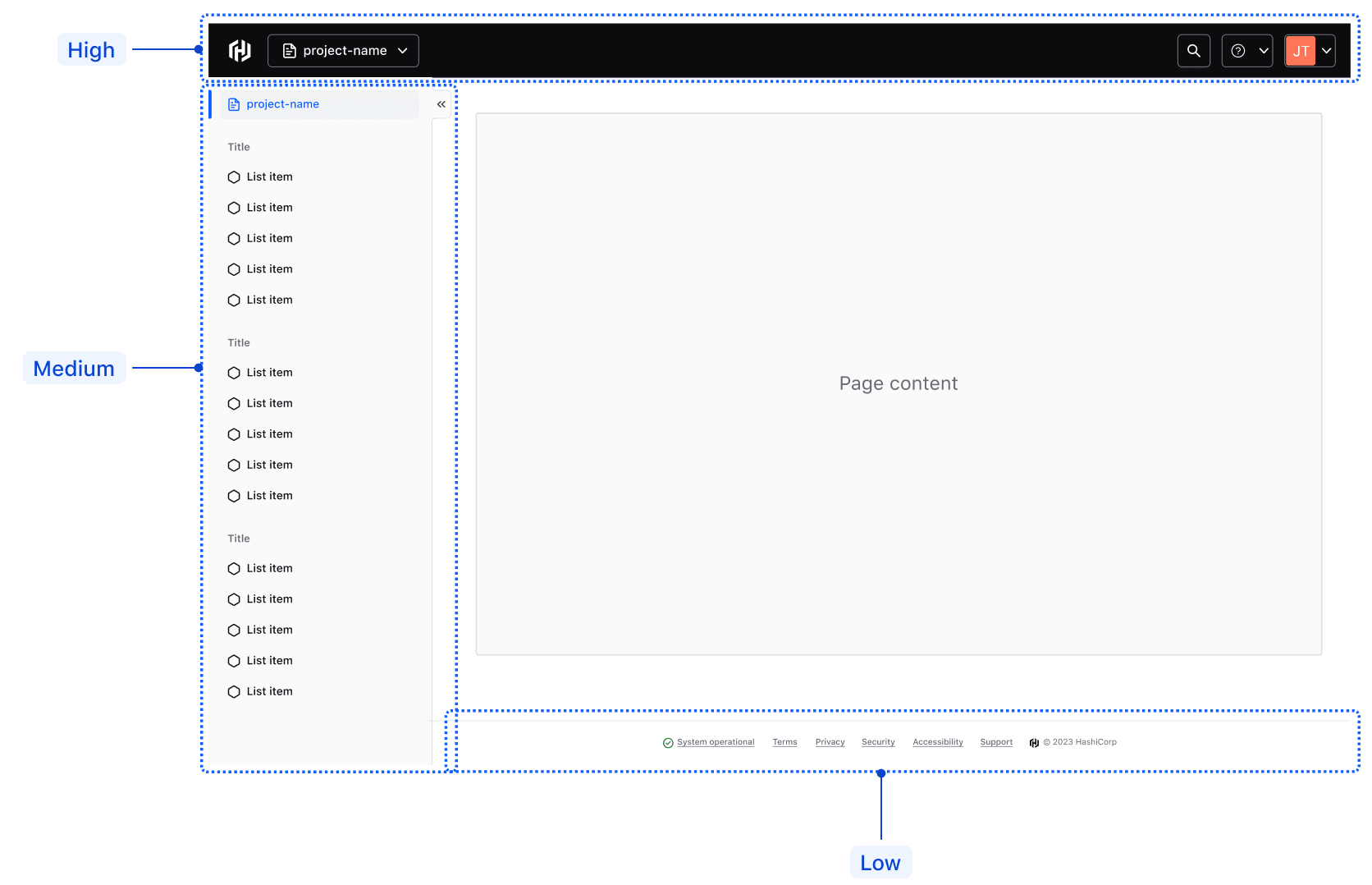

Navigation hierarchy

The App Header provides consistent navigation between global application areas, such as organizations and projects, while facilitating easy access to utilities like support and user settings.

In the hierarchy of navigational elements, the App Header sits at the top and is followed by:

• The App Side Nav, which focuses on contextual pages and subpages within a project or organization.
• The App Footer, which focuses on non-essential metadata and general links.

Global navigation

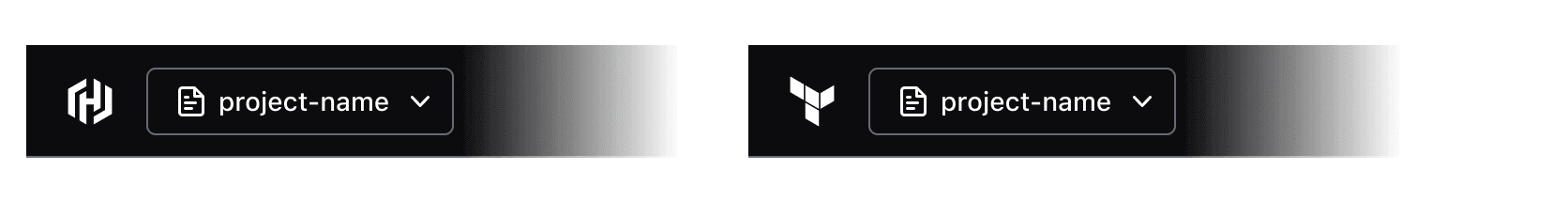

Home link

The home link gives users quick, consistent access to the application's home page or dashboard.

For cloud products, the icon should always be hcp. For standalone or open-source products, it should be the product’s service icon; e.g., terraform.

Text

The home link supports an optional text property to more explicitly title an application. We recommend using this property sparingly as it's often unnecessary to title a HashiCorp application in such an explicit manner.

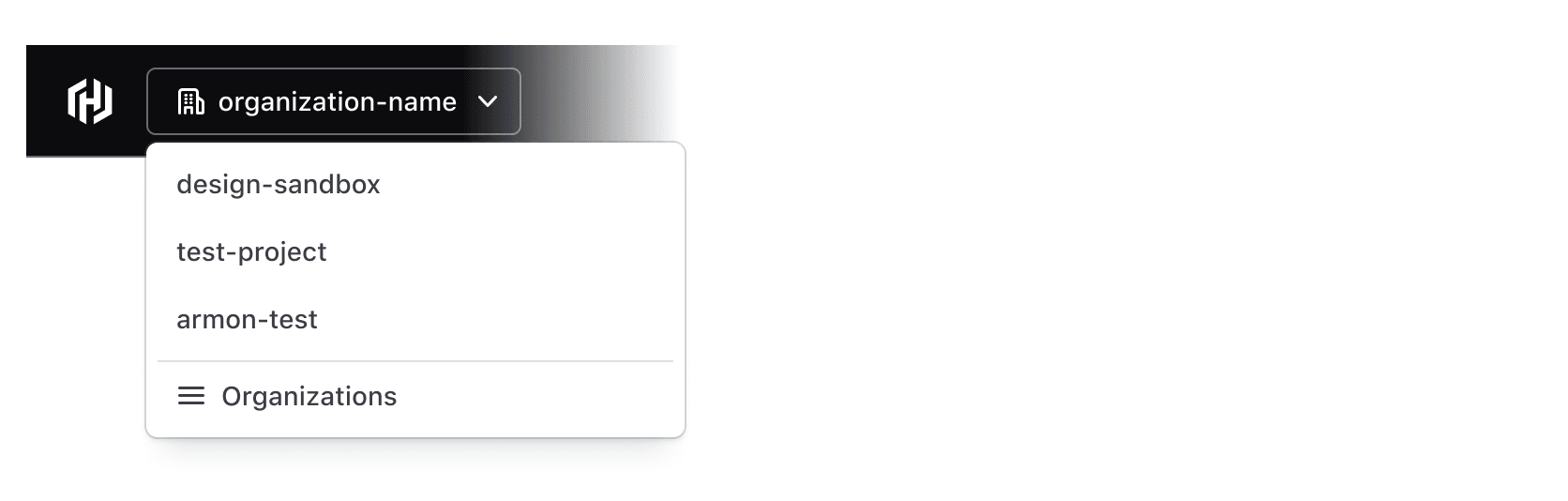

Context switcher

The context switcher allows users to switch between different global contexts within the product or application, such as navigating between different organizations or projects.

Utility navigation

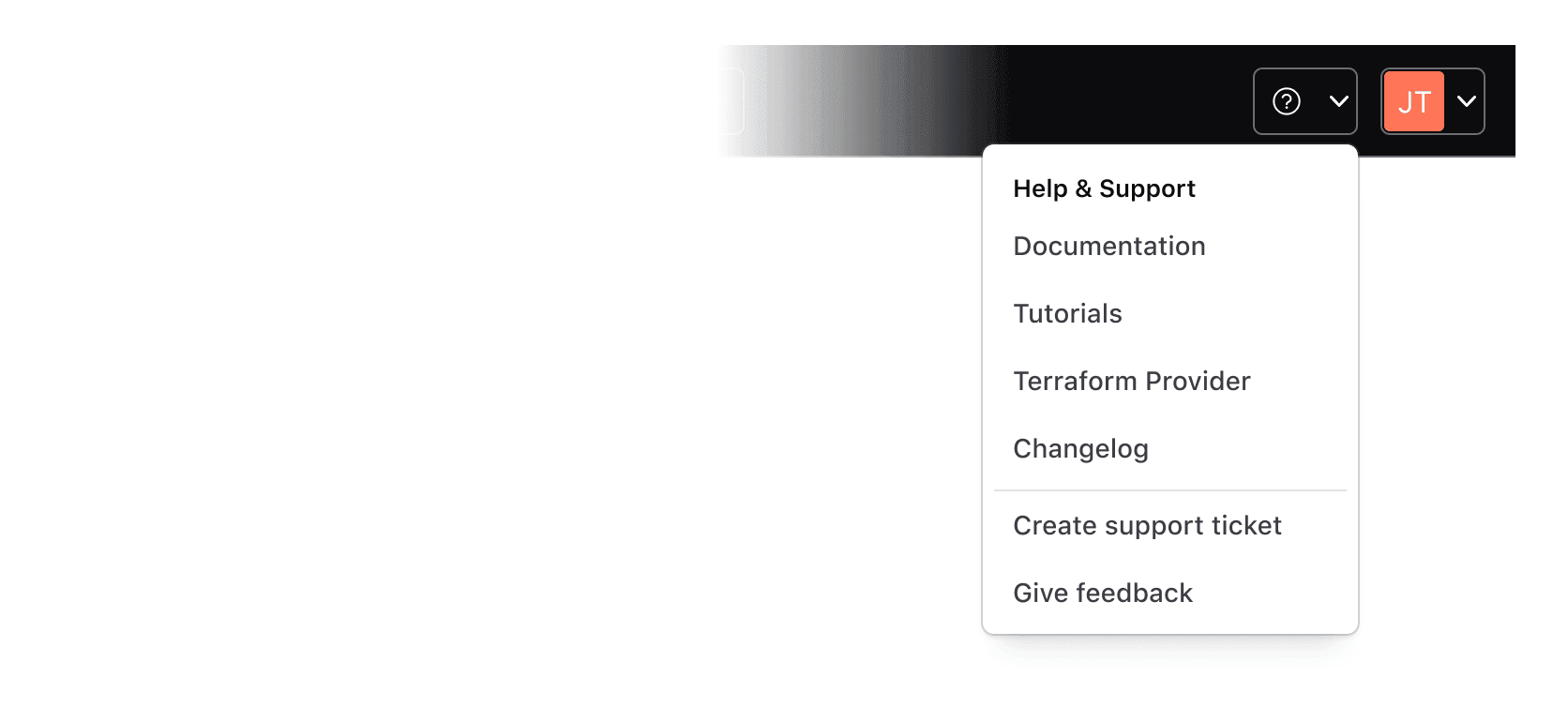

Help dropdown

Use the help dropdown to provide users with access to support and helpful resources that can be easily accessible from anywhere within the application, e.g., links to the help center, documentation, or tutorials.

Avoid placing non-help-related links within the help dropdown menu.

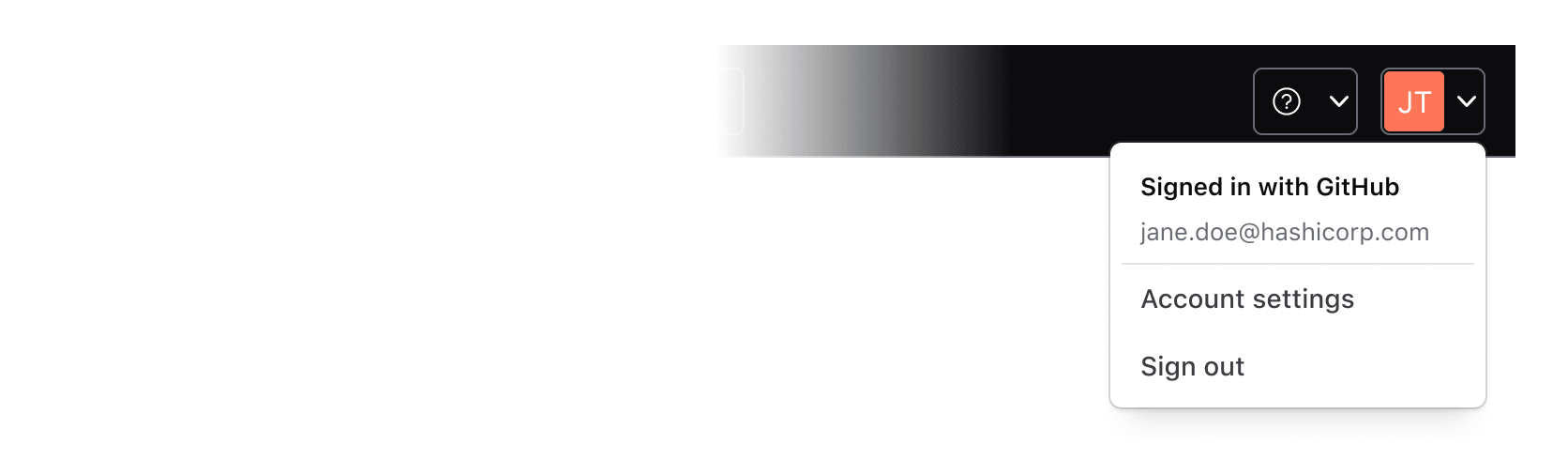

User dropdown

The user dropdown gives users quick and easy access to their settings and preferences. The menu should contain links or actions related to the user's profile, settings, and/or preferences.

Avoid placing links to unrelated pages within the user dropdown menu.

Search

Search within the App Header is triggered by a standard HDS Button themed to match the App Header’s styles. The application teams are responsible for building search capabilities themselves, if and when needed.

Sizes

The Hds::AppHeader component supports basic responsive behavior out of the box with a single breakpoint at 1088px. The Figma component offers two variants:

• Large: applicable for most desktop-sized viewports with a minimum width of 1088px.
• Small: applicable for most mobile and some tablet-sized viewports with a maximum width of 1088px.

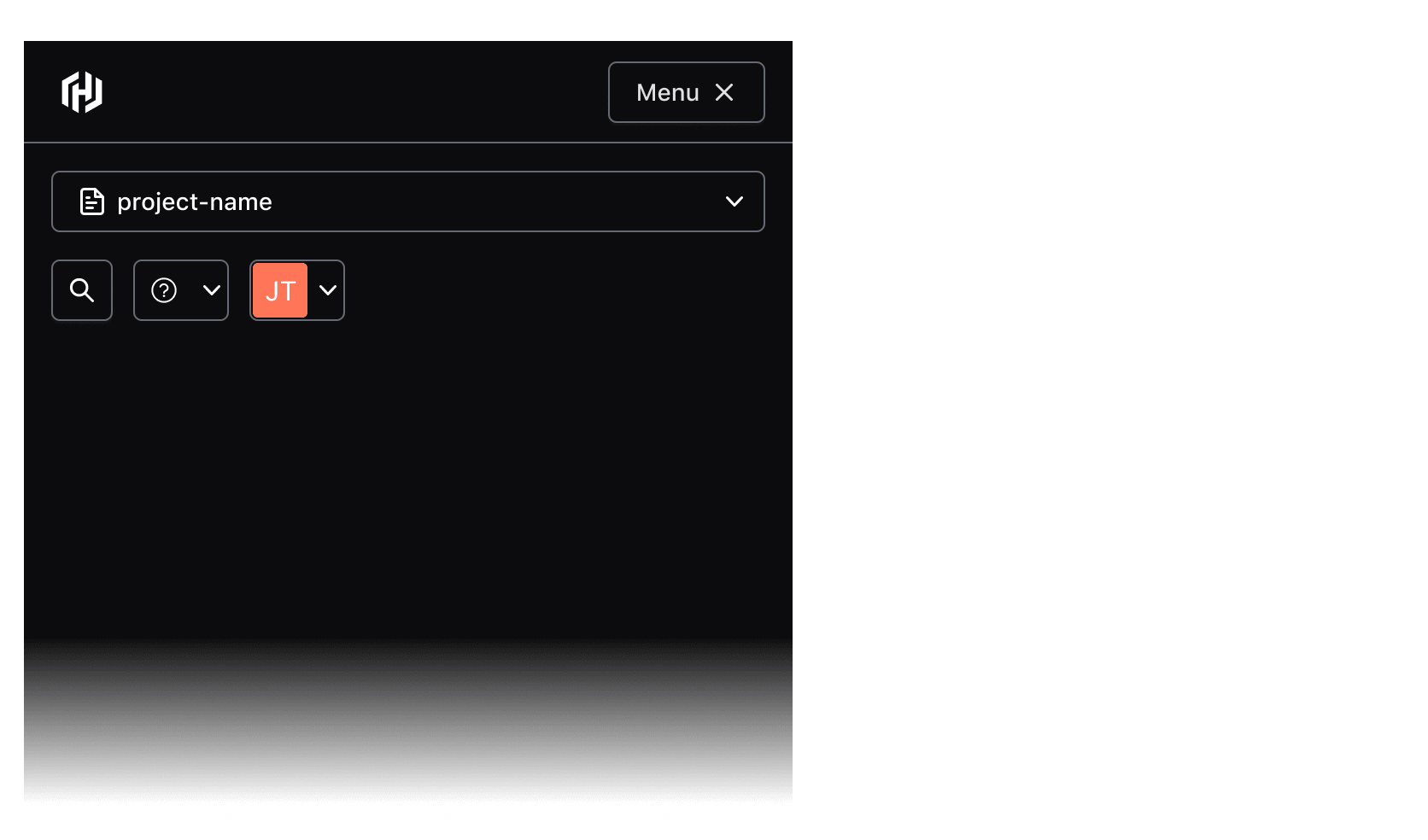

Menu

In the Ember component, the controls (context switcher, help/user dropdown, etc) contained within the App Header will collapse automatically into a vertical menu that can be toggled open and closed with the Menu button.

In Figma, we publish a separate Menu component for UIs and prototypes for smaller viewports.

Responsive characteristics

By default (and if used within the App Frame), the App Header will occupy 100% of the viewport width. As the viewport width condenses, the components' controls will collapse into a menu that can be toggled open/closed with the menu button (shown conditionally based on the viewport width).

At smaller viewports, the menu containing the AppHeader controls will occupy 100% of the viewport height and prevent scrolling content on the main page.

Usage in the App Frame

The AppHeader is intended to be used within the AppFrame component (only supported in code), where a location is reserved for the component out of the box.

If you intend to use the AppHeader without the AppFrame, contact the HDS team for assistance and guidance on implementation.

How to use this component

The AppHeader provides persistent global navigation controls and utility links such as help and user menus. It is meant to be paired with the AppSideNav which should be used to provide local or page-level navigation. Both these components are intended to be used within the Hds::AppFrame component. The AppHeader specifically should be used within the App Frame’s Frame.Header contextual component.

Layout

The AppHeader exposes three “slots” (named blocks) where consumers can yield the navigation content and also add business logic to control the content.

The <:logo> block should contain the AppHeader::HomeLink which is provided as a child component.

The other two slots are intended for consumer-provided controls. The <:globalActions> block should typically contain a “context switcher” (sometimes called an “org switcher” or “project switcher”). The <:utilityActions> block is used to provide utilities including “Help” and “User” menus and, optionally, “Search”.

{{! for demo purposes, we set @hasA11yRefocus to false but in your app it will
probably need to be set to true (or omitted to rely on defaults) }}
<Hds::AppHeader @hasA11yRefocus={{false}}>
  <:logo>
    <Doc::Placeholder @height="2em" @width="auto" @text="HomeLink" @background="#e4e4e4" />
  </:logo>

  <:globalActions>
    <Doc::Placeholder @height="2em" @width="auto" @text="OrgSwitcher" @background="#e4e4e4" />
  </:globalActions>

  <:utilityActions>
    <Doc::Placeholder @height="2em" @width="auto" @text="HelpMenu" @background="#e4e4e4" />
    <Doc::Placeholder @height="2em" @width="auto" @text="UserMenu" @background="#e4e4e4" />
  </:utilityActions>
</Hds::AppHeader>

Content

HomeLink

The Hds::AppHeader::HomeLink child component should be yielded within the <:logo> block. It provides consistent branding and navigates the user to the “home” or main dashboard page.

It requires a value for the @icon and @text arguments.

It is built on top of the Hds::Interactive component, so it accepts all its routing arguments (eg. @href, @route, @query, @model(s), etc.).

Refer to the Component API section for details.

{{! for demo purposes, we set @hasA11yRefocus to false but in your app it will
probably need to be set to true (or omitted to rely on defaults) }}
<Hds::AppHeader @hasA11yRefocus={{false}}>
  <:logo>
    <Hds::AppHeader::HomeLink @icon="hashicorp" @text="HashiCorp home menu" @href="/" />
  </:logo>

  <:globalActions>
    <Doc::Placeholder @height="2em" @width="auto" @text="OrgSwitcher" @background="#e4e4e4" />
  </:globalActions>

  <:utilityActions>
    <Doc::Placeholder @height="2em" @width="auto" @text="HelpMenu" @background="#e4e4e4" />
    <Doc::Placeholder @height="2em" @width="auto" @text="UserMenu" @background="#e4e4e4" />
  </:utilityActions>
</Hds::AppHeader>

When @isIconOnly is set to false, the @text argument displays text inline with the logo and can be used to more deliberately title an application or provide other differentiating text.

{{! for demo purposes, we set @hasA11yRefocus to false but in your app it will
probably need to be set to true (or omitted to rely on defaults) }}
<Hds::AppHeader @hasA11yRefocus={{false}}>
  <:logo>
    <Hds::AppHeader::HomeLink @icon="terraform" @text="Admin Console" @isIconOnly={{false}} @href="/" />
  </:logo>

  <:utilityActions>
    <Doc::Placeholder @height="2em" @width="auto" @text="HelpMenu" @background="#e4e4e4" />
    <Doc::Placeholder @height="2em" @width="auto" @text="UserMenu" @background="#e4e4e4" />
  </:utilityActions>
</Hds::AppHeader>

The HomeLink also accepts optional arguments; for example, it’s possible to provide a custom color for the icon if needed:

{{! for demo purposes, we set @hasA11yRefocus to false but in your app it will
probably need to be set to true (or omitted to rely on defaults) }}
<Hds::AppHeader @hasA11yRefocus={{false}}>
  <:logo>
    <Hds::AppHeader::HomeLink
      @icon="terraform"
      @text="Terraform home menu"
      @color="var(--token-color-terraform-brand)"
      @href="/"
    />
  </:logo>

  <:globalActions>
    <Doc::Placeholder @height="2em" @width="auto" @text="OrgSwitcher" @background="#e4e4e4" />
  </:globalActions>

  <:utilityActions>
    <Doc::Placeholder @height="2em" @width="auto" @text="HelpMenu" @background="#e4e4e4" />
    <Doc::Placeholder @height="2em" @width="auto" @text="UserMenu" @background="#e4e4e4" />
  </:utilityActions>
</Hds::AppHeader>

Global actions

Consumers should provide their own “context switcher” (e.g., “org switcher” or “project switcher”) control yielded within the <:globalActions> block. HDS does not currently provide this component.

{{! for demo purposes, we set @hasA11yRefocus to false but in your app it will
probably need to be set to true (or omitted to rely on defaults) }}<Hds::AppHeader
  @hasA11yRefocus={{false}}
>
  <:logo>
    <Hds::AppHeader::HomeLink @icon="hashicorp" @text="HashiCorp home menu" @href="/" />
  </:logo>

  <:globalActions>
    <Hds::Dropdown @enableCollisionDetection={{true}} as |dd|>
      <dd.ToggleButton @text="Choose an organization" @icon="org" />
      <dd.Checkmark>
        organizationName
      </dd.Checkmark>
    </Hds::Dropdown>
  </:globalActions>

  <:utilityActions>
    <Doc::Placeholder @height="2em" @width="auto" @text="HelpMenu" @background="#e4e4e4" />
    <Doc::Placeholder @height="2em" @width="auto" @text="UserMenu" @background="#e4e4e4" />
  </:utilityActions>
</Hds::AppHeader>

Utility actions

Consumers should provide their own utility action controls yielded within the <:utilityActions> block. Recommended controls are a user menu and help menu. Other controls such as a search button can optionally be included.

{{! for demo purposes, we set @hasA11yRefocus to false but in your app it will
probably need to be set to true (or omitted to rely on defaults) }}
<Hds::AppHeader @hasA11yRefocus={{false}}>
  <:logo>
    <Hds::AppHeader::HomeLink @icon="hashicorp" @text="HashiCorp home menu" @href="/" />
  </:logo>

  <:globalActions>
    <Hds::Dropdown @enableCollisionDetection={{true}} as |dd|>
      <dd.ToggleButton @text="Choose an organization" @icon="org" />
      <dd.Checkmark>
        organizationName
      </dd.Checkmark>
    </Hds::Dropdown>
  </:globalActions>

  <:utilityActions>
    <Hds::Dropdown @enableCollisionDetection={{true}} as |dd|>
      <dd.ToggleIcon @icon="help" @text="help menu" />
      <dd.Title @text="Help & Support" />
      <dd.Interactive @route="components" {{on "click" dd.close}}>Documentation</dd.Interactive>
      <dd.Interactive @route="components" {{on "click" dd.close}}>Tutorials</dd.Interactive>
      <dd.Interactive @route="components" {{on "click" dd.close}}>Terraform Provider</dd.Interactive>
      <dd.Interactive @route="components" {{on "click" dd.close}}>Changelog</dd.Interactive>
      <dd.Separator />
      <dd.Interactive @route="components" {{on "click" dd.close}}>Create support ticket</dd.Interactive>
      <dd.Interactive @route="components" {{on "click" dd.close}}>Give feedback</dd.Interactive>
    </Hds::Dropdown>

    <Hds::Dropdown @enableCollisionDetection={{true}} as |dd|>
      <dd.ToggleIcon @icon="user" @text="user menu" />
      <dd.Title @text="Signed In" />
      <dd.Description @text="email@domain.com" />
      <dd.Interactive @route="components" {{on "click" dd.close}}>Account settings</dd.Interactive>
    </Hds::Dropdown>
  </:utilityActions>
</Hds::AppHeader>

Component API

AppHeader

AppHeader::HomeLink

The AppHeader::HomeLink component uses the generic Hds::Interactive component. For more details about this utility component, please refer to its documentation page.

Anatomy

Large viewports

Small viewports

Conformance rating

When used as recommended, there should not be any WCAG conformance issues with this component.

Focus

When the App Header receives focus via keyboard, the home link should focus as the first interactive element in the DOM (document object model). Then, focus will follow through with the rest of the elements according to their order in the DOM.

Since the App Header is a complex component that holds several nested components and can contain multiple types of content, nested elements must adhere to their individual accessibility criteria.

Applicable WCAG Success Criteria

This section is for reference only. This component intends to conform to the following WCAG Success Criteria:

Support

If any accessibility issues have been found within this component, let us know by submitting an issue.

6.1.0

Converted component to gts format.

Removed usage of hdsLinkToModels and hdsLinkToQuery helpers, instead forward the arguments to HdsInteractive.

6.0.0

Fixed issue with disabled styles for nested elements in AppHeader not applying to non-HDS components when AppSideNav is open in mobile view

5.1.0

Optimized CSS used to apply dark theme styles to Buttons & Dropdowns

5.0.0

Fixed the type of @a11yRefocusRouteChangeValidator to match the expected type from ember-a11y-refocus. The new type is (transition: Transition) => boolean instead of string.

4.24.1

Fixed color inheritance for Buttons within DialogPrimitive based components (such as the Modal and Flyout) when triggered from within the AppHeader

4.23.0

return close callback to the :logo named block so the menu actions can be hidden programmatically when the component is in a mobile view.

Fixed classname so that non-active controls in the AppHeader will be styled as disabled when the AppSideNav is expanded and in overlay mode

4.22.0

Changed the default breakpoint from lg to md.

4.21.1

Added close callback to the :globalActions and :utilityActions named blocks so the menu actions can be hidden programmatically when the component is in a mobile view.

4.21.0

Refactored the Home Link, removed the @ariaLabel argument, added @text (should replace @ariaLabel) and @isIconOnly arguments.

4.20.0

Removed usage of --hds-app-desktop-breakpoint CSS variable and relied on the @breakpoint argument for override of mobile behavior

Fixed import path for hds-breakpoints

4.19.0

Formally published the AppHeader component. To be used in conjunction with the AppFrame and the AppSideNav components.

4.15.0

Aligned private class properties to follow a standardized notation

4.10.0

Changed default value of @a11yRefocusSkipTo from "#main" to "#hds-main"

Hid the closed menu content in mobile view using CSS instead of conditionally rendering/not rendering the menu content.

Added NavigationNarrator with associated arguments to provide a "skip link".

Styled inoperable actions as disabled (which occurs when the SideNav is expanded in mobile view)

Fixed styling issue to prevent Button and Dropdown nested within another Dropdown from inheriting dark theme.

Fixed issue with mobile menu to prevent tabbing to hidden content and hiding it from assistive technology when closed.

4.8.0

Added the AppHeader component and its sub-components, but did not publish them for public use.

Also added the following design tokens:

• --token-app-header-height
• --token-app-header-home-link-size
• --token-app-header-logo-size
